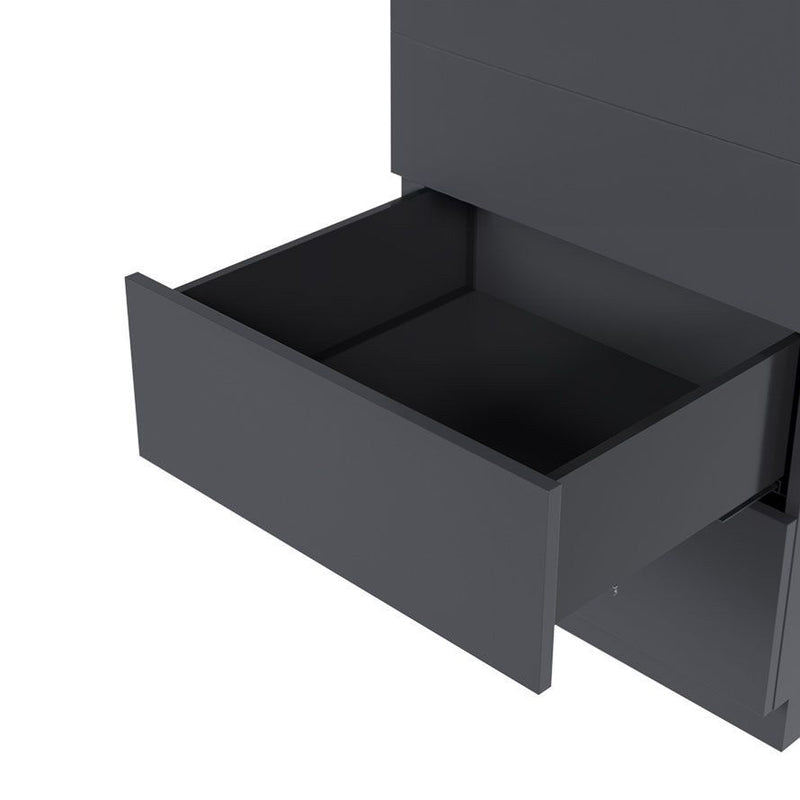

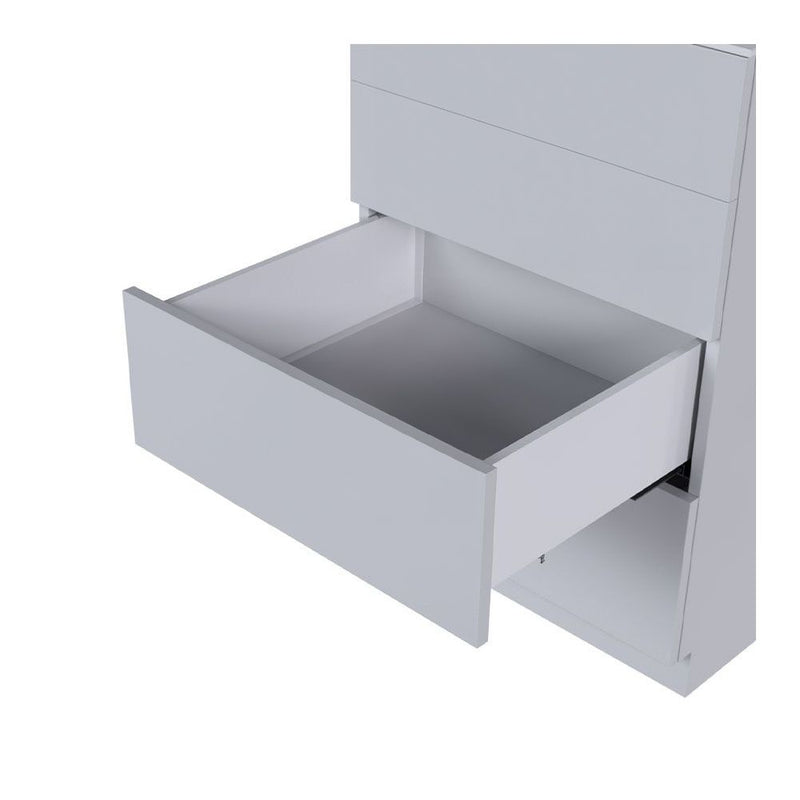

ULTRA BOX PUSH OPEN Drawer System H=167 mm (6.6") – Full Extension | White & Graphite
About returns on all eligible orders
Please read: Return and refund policy
The ULTRA BOX PUSH OPEN Drawer System is designed for premium handleless cabinetry, combining modern aesthetics with reliable performance. Featuring an integrated push-to-open mechanism, the drawer opens effortlessly with a gentle press, creating a clean and minimalist appearance without handles.
Built with synchronized full-extension undermount runners, the system provides smooth, quiet operation and complete access to drawer contents. Its slim metal drawer sides maximize usable storage space, while the integrated 3D front adjustment ensures precise alignment for a professional installation.
With a 167 mm (6.6") drawer height and available in White or Graphite, the ULTRA BOX PUSH OPEN system is ideal for kitchens, bathrooms, wardrobes, and office furniture where both style and functionality are essential.
Key Features
- Push-to-open mechanism for handleless furniture
- Slim metal drawer sides with modern design
- Full-extension synchronized undermount runners
- Smooth and quiet operation
- 3D front adjustment
- Quick and easy installation
- Load capacity up to 40 kg (88 lbs)
- Tested for 80,000 opening and closing cycles
- Available in White and Graphite
- Ideal for residential and commercial cabinetry
Specifications
| Feature | Specification |
|---|---|
| Product Type | Drawer System |
| Collection | ULTRA BOX |
| Opening System | Push-to-Open |
| Drawer Height | 167 mm (6.6") |
| Runner Type | Full Extension Undermount |
| Drawer Side | Slim Metal |
| Load Capacity | 40 kg (88 lbs) |
| Front Adjustment | 3D |
| Cycle Test | 80,000 Cycles |
| Available Lengths | 300 mm (11.8"), 350 mm (13.8"), 400 mm (15.7"), 450 mm (17.7"), 500 mm (19.7"), 550 mm (21.7") |
| Finishes | White, Graphite |
Package Includes
- ULTRA BOX PUSH OPEN drawer side set
- Full-extension synchronized undermount runners
- Rear panel connectors
- Front fixing brackets
- Left and right cover caps
- Installation hardware
